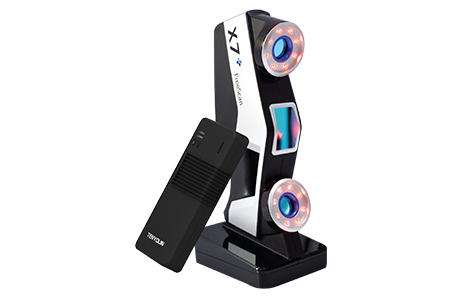

Wireless FreeScan X7+

- Go wireless
- Redefining the portability of handheld 3D scanners
- Brings you true freedom in 3D scanning
- Real-time data display on your smartphone or tablet, for ease of scanning of large objects and scenes

Wireless FreeScan X7+ Specifications
Model | FreeScan X7+ |
Components | AirMaster, USB- air line, Battery*3, Charger |
Scan rate | 480,000 points/s |
Connection standard | USB3.0/WiFi |
Accuracy | 0.030 mm |
Volumetric accuracy | 0.02+0.06 mm/m |
Stand-off distance | 300 mm |
Depth of field | 250 mm |
Scanning part size | 0.1-8.0m, expandable |
Windows system | windows 7/windows 10 |
PC requirements | RAM: 32G or above; CPU:3GHz or above; Display Card: Nvdia discrete graphics card |
AirMaster | |
Weight |
0.8 kg (including battery) |
Size | 210 x 100 x 40 (mm) |
Operating temperature range | -10 — 40°C |
Working humidity range | 10%-90% RH |
Battery capacity | 2100 mAh |
Sustainable working hours | 3h |
Standby time | 12h |
Wireless mode | 802.11n/ac |
Network environment | |
Wireless router | 802.11n/ac, the transmission rate is not less than 600Mbps. |
Need help with Wireless FreeScan X7+?
DTS is the authorized partner of Shining 3D in Singapore & Malaysia.
Speak to our representative!
With more than 15 years of experience in PLM solution, our consultants and engineers are equipped with great skills and knowledge and ready to help.
Case Studies of Wireless FreeScan X7+
- Case Study: 3D Scanning of Castings for Dimensional Inspection Actual Industrial Case Study
