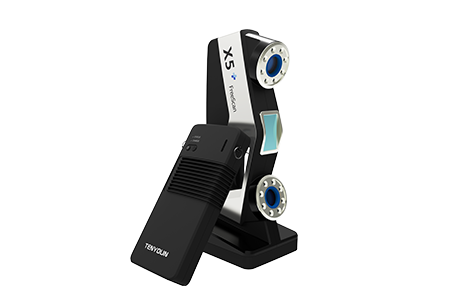

Wireless FreeScan X5+
- Go wireless
- Redefining the portability of handheld 3D scanners
- Brings you true freedom in 3D scanning
- Real-time data display on your smartphone or tablet, for ease of scanning of large objects and scenes
Wireless FreeScan X5+ Specifications
| Model | FreeScan X5+ |
| Components | AirMaster, USB- air line, Battery*3, Charger |
| Scan rate | 350,000 points/s |
| Connection standard | USB3.0/WiFi |
| Accuracy | 0.035mm |
| Volumetric accuracy | 0.02+0.08 mm/m |
| Stand-off distance | 300 mm |
| Depth of field | 250 mm |
| Scanning part size | 0.1-8.0m, expandable |
|
Windows system |
windows 7/windows 10 |
| PC requirements | RAM: 32G or above; CPU:3GHz or above; Display Card: Nvdia discrete graphics card |
| AirMaster | |
|
Weight |
0.8 kg (including battery) |
| Size | 210 x 100 x 40 (mm) |
| Operating temperature range | -10 — 40°C |
| Working humidity range | 10%-90% RH |
| Battery capacity | 2100 mAh |
| Sustainable working hours | 3h |
| Standby time | 12h |
| Wireless mode | 802.11n/ac |
| Network environment | |
| Wireless router | 802.11n/ac, the transmission rate is not less than 600Mbps. |
